3- Person Interpreter Booths brown

Interpreter booths are designed to create the best acoustic environment for the distinction of various languages spoken simultaneously It provides the perfect visual and two-way audio communication between the interpreters and the particip

Colse
Product consulting
Customer service hotline:+86 020-31068133

Interpreter booths are designed to create the best acoustic environment for the distinction of various languages spoken simultaneously, It provides the perfect visual and two-way audio communication between the interpreters and the participants in various meetings conferences.

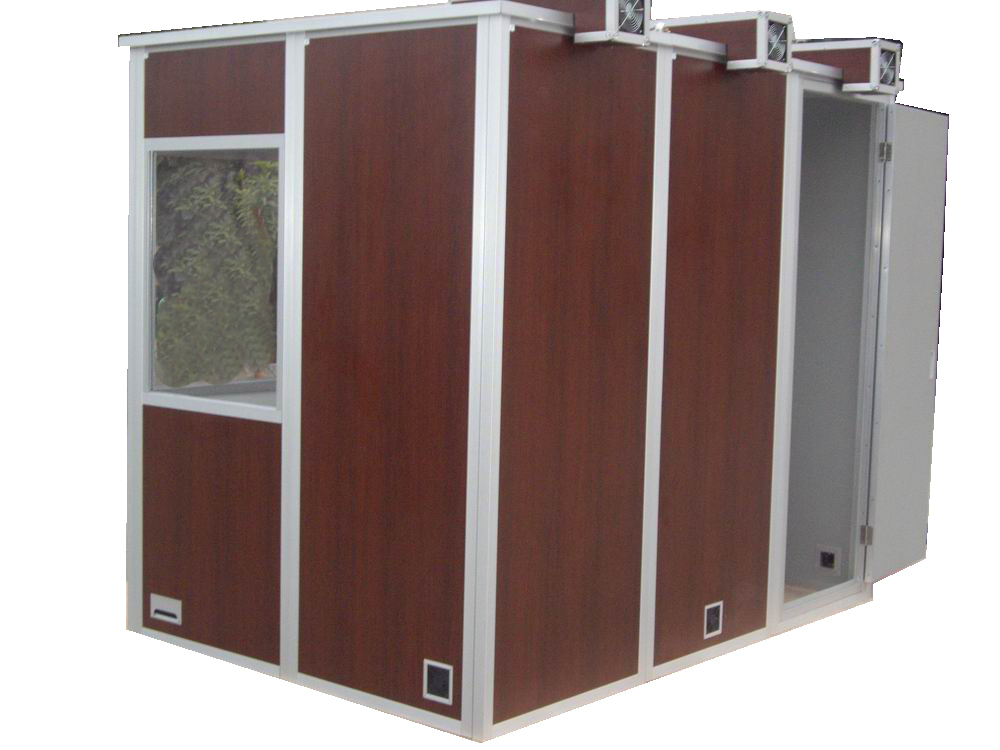

The light weight interpreter booths JW-IB2L01 is a light weight, modular, easy to mount interpreter booth for 3 persons, but can be extended for up to 6 persons, using the optional extension sets. 1 or 2 persons can easily build the booth without any tools. The JW-IB3L01 complies with the ISO 4043 norm for mobile interpreter booths and is equipped with table and 2 cable ducts.


Specifications
• Standard suited for 3 persons
• Standard size:W1600xD2400xH2000 mm
• Weight approx. 180KG
• Standard 14 panel configuration
• Extendable up to 6 persons
• Ventilation system integrated in roof panels
• Outer Materials is high density plywood coated with fire-retardant paint
• light grey color, other colors are available on demand.


Package
• Hard flight cases
• Dimensions :W2080xD600xH1110 mm
• 6 swivel wheels with brake

Configuration
1. sound insulation door: Easy opening 180 angle without noise; Outward;
2. windows: Size window is more than 670*800mm (H); Ample sight space; acrylic material ( thickness 6mm; Anti-scratch; Prevent sharp light outside).
3. ventilation system: two silent ventilation system on top (optional), almost silence(< 40dB).
4. work surface: 152cm(L)*50cm(W)*73cm(H); Can bear weight of all equipments
5. cable passage: Dia. 5cm
6. standard 10 wall panels(9 of which have windows with acrylic and 1 door panels), 3 roof panels , 1 working table. the booth also have 2 cable ducts

Capacity of sound-proof
The capacity of sound proof of our booth is completely over ISO-4043 standard, at least 30 dB

Benfit
A. Easy installation, can be performed by 1-2 person
B. Very comfortable working environment
C. Clear view window (acrylic)
D. Durable build
E. The table is easy to install without using tools at all
F. Good looking and Comfortable
G. Suitable for all types for conference systems


Product Name
Three people Simultaneous Interpreter Booth
Material
Aluminum , wood , acrylic
Color
blue , gery , yellow , black
Standard
ISO : 4043 , CE , ROHS , TUV
Booth type
table booth , one people booth , two peopel booth , three people booth
Sample time
3-5 working days
Production time
5 working day depend on the quantity
Packing
all manufactured flight case are wrapped in Bubble Bag & Export Cartons only; extra packaging is available on request.There is no extra charge for this service.

Shipping method
By DHL ,UPS,TNT ,Fedex ,Almost all express shipping methods service if small order, and we can book space and get you the earliest date of delivery by sea if bulk order
If there is any unhappy occations with the shipping, we will try our best to solve it with the shipping agent and ask for compensation.
Payment terms
By T/T, Western Union , Paypal , Escrow Payment
Warranty
36 mounths

After sells service
If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year.
